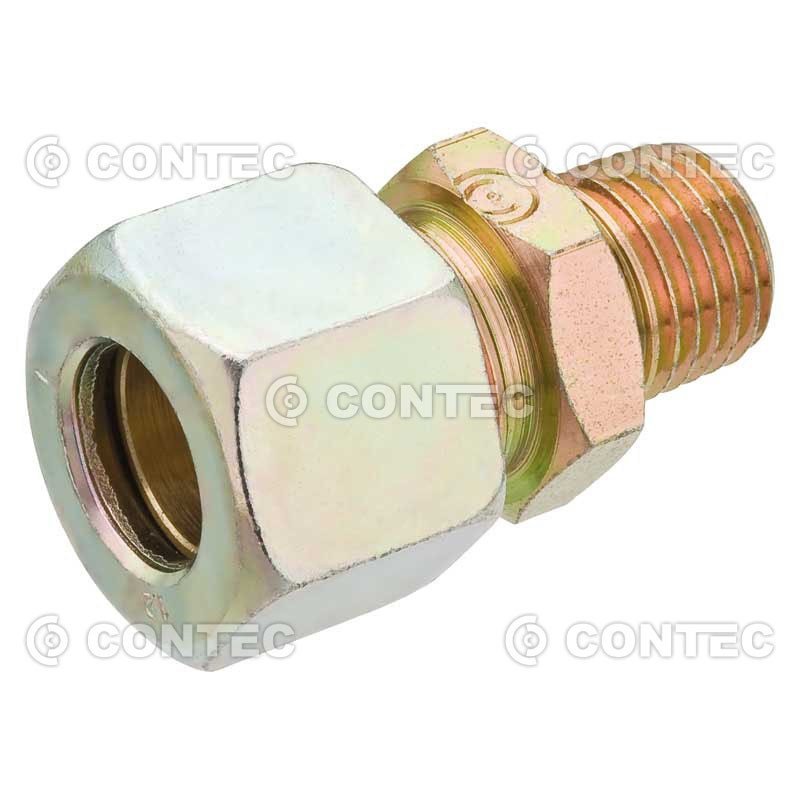

Conector Macho
CFM03
| Código | Medida | EMB. |
|---|---|---|
| CFM03-0402M | OD.4MM X 1/8 NPT | 10 |
| CFM03-0404M | OD.4MM X 1/4 NPT | 10 |
| CFM03-0602M | OD.6MM X 1/8 NPT | 10 |
| CFM03-0604M | OD.6MM X 1/4 NPT | 10 |
| CFM03-0606M | OD.6MM X 3/8 NPT | 5 |
| CFM03-0608M | OD.6MM X 1/2 NPT | 5 |
| CFM03-0802M | OD.8MM X 1/8 NPT | 10 |
| CFM03-0804M | OD.8MM X 1/4 NPT | 10 |
| CFM03-0806M | OD.8MM X 3/8 NPT | 5 |
| CFM03-0808M | OD.8MM X 1/2 NPT | 5 |
| CFM03-1002M | OD.10MM X 1/8 NPT | 10 |
| CFM03-1004M | OD.10MM X 1/4 NPT | 10 |
| CFM03-1004GM | OD.10MM X 1/4 BSP | 10 |
| CFM03-1006M | OD.10MM X 3/8 NPT | 10 |
| CFM03-1006GM | OD.10MM X 3/8 BSP | 10 |
| CFM03-1008M | OD.10MM X 1/2 NPT | 5 |
| CFM03-1204M | OD.12MM X 1/4 NPT | 10 |
| CFM03-1204GM | OD.12MM X 1/4 BSP | 10 |
| CFM03-1206M | OD.12MM X 3/8 NPT | 10 |
| CFM03-1206GM | OD.12MM X 3/8 BSP | 10 |
| CFM03-1208M | OD.12MM X 1/2 NPT | 5 |
| CFM03-1604M | OD.16MM X 1/4 NPT | 5 |
| CFM03-1606M | OD.16MM X 3/8 NPT | 5 |
| CFM03-1608M | OD.16MM X 1/2 NPT | 5 |
